FoilMount 3.0 Carbon

The FoilMount 3.0 Carbon it’s a universal hydrofoil atachment for any board on the market!

Turn your old board into hydfroil board with no time. Compatible with any top plate attachment via 90mm tracks. Super strong bond using 3M Self adhesive tape to stick with any board.

New for 2020 is the full carbon, low profile FoilMount 3.0 Carbon.

This compressed carbon plate is not only beautiful it is also incredibly strong allowing it to be thinner than the original FoilMount.  This setup weighs just over 1lb so it is also about 30% lighter than previous models.  The new curved shape along with it’s light weight and thinner profile make it incredibly low drag in the water.  You cannot tell there is a track mounted on the bottom of your board while using it without a hydrofoil.  We have also upgraded the included hardware.  Because this system is so thin we had to invent a new hardware set that would work with any base plate on the market call the Wizardhat Hardware.

Each FoilMount 3.0 Carbon includes a set of 4 Wizardhat hardware and they will allow you to attach any hydrofoil on the market to your FoilMount.

Features:
-New Carbon Fiber bulletproof construction
-CNC milled tracks and edges

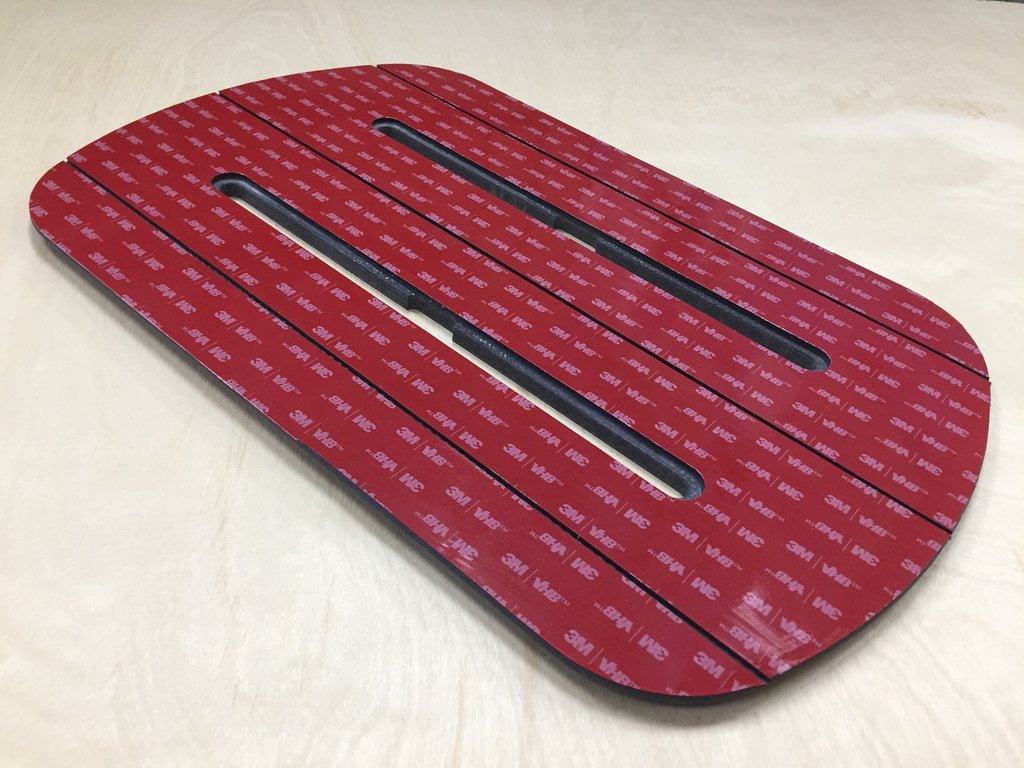

-Bubble channels in adhesive to decrease bubbles while installing
-Flexible edges and center-line to accommodate more board geometry.
-New more efficient shape
-Lighter design weighs 30% less than FoilMount 2.0

Includes:

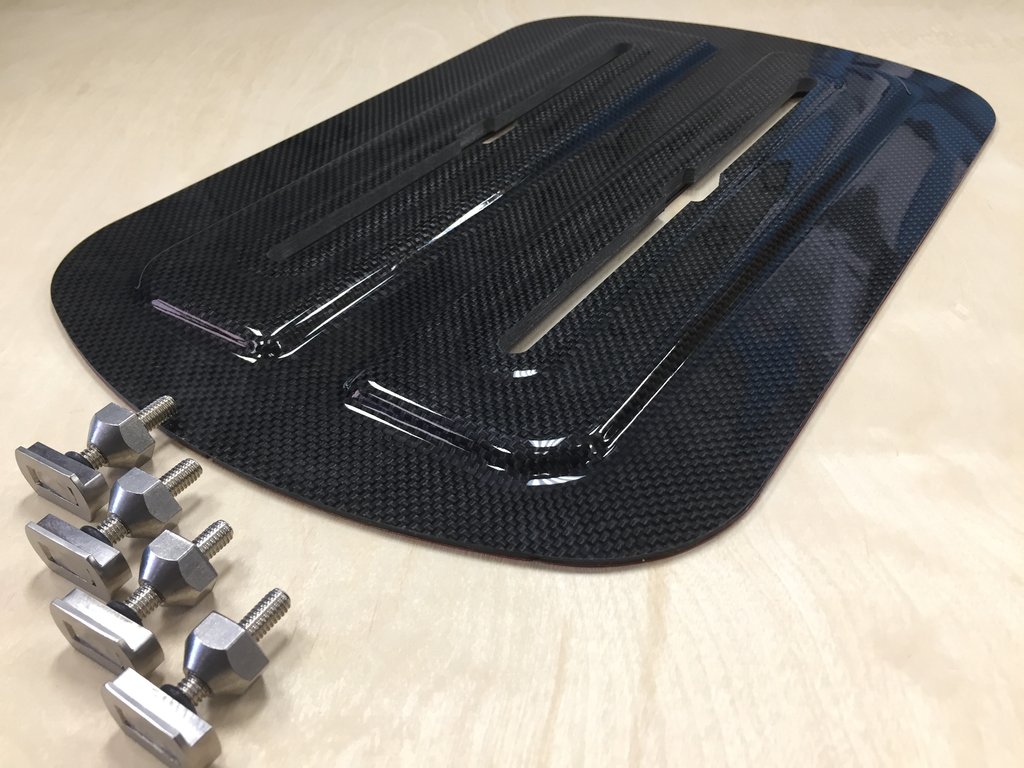

-FoilMount 3.0 Carbon plate with adhesive back
-Installation and preparation materials (Alcohol wipes, scotch-brite pad)

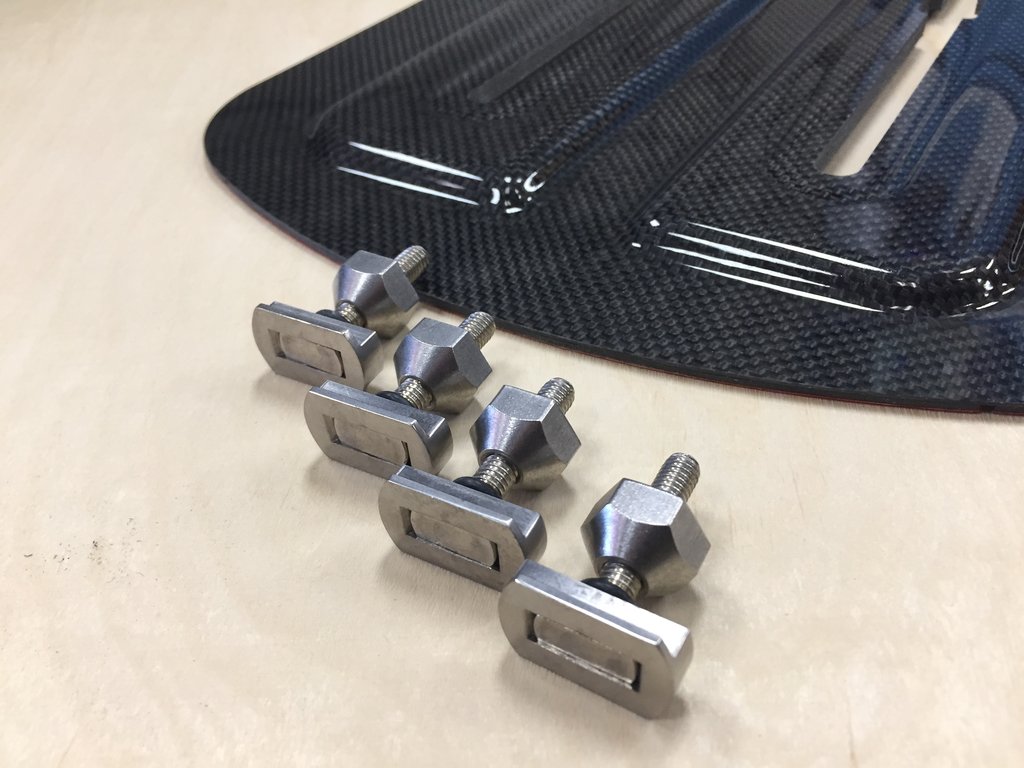

-4 sets of Wizardhat hardware (25mm T-bolts)
-Extra set of 4 x 35mm T-bolts for thicker base plates
-Instructions

Dimensions:
Track spacing: 90mm
Track length: 235mm (9.28in)

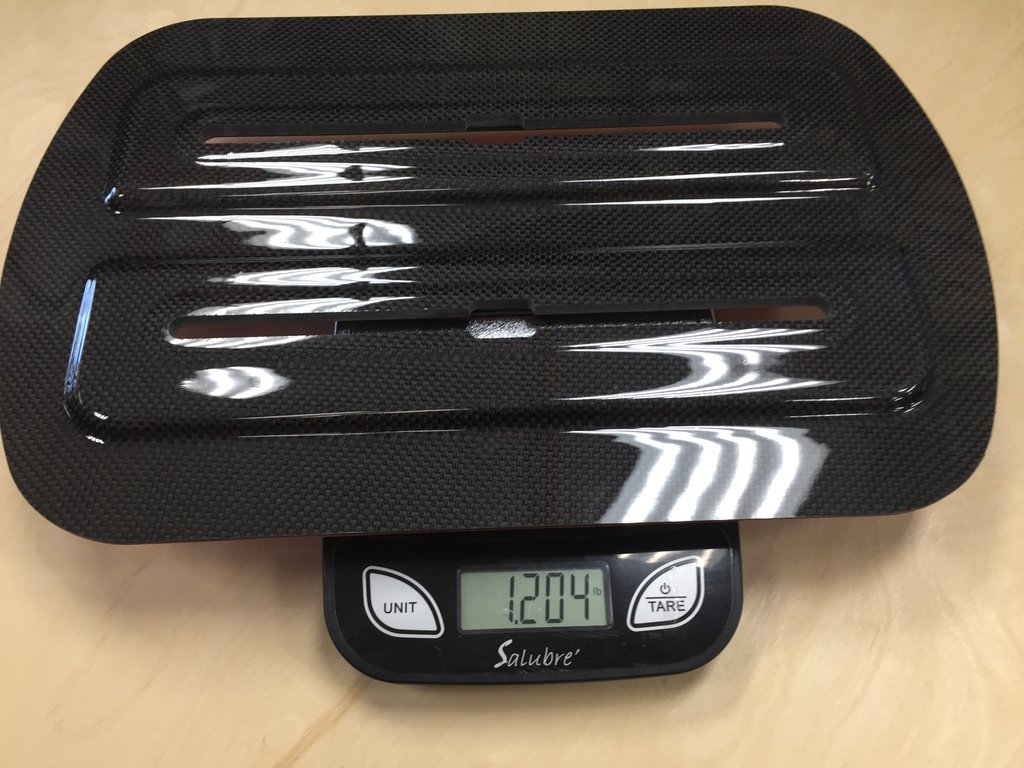

FoilMount Weight: 1.16lbs
Width of Mount 241mm (9.5″)
Length of Mount 371mm (14.625″)
Thickness in track area 9.25mm
Thickness at edge 2.6mm
