Description

F-One Wing Foil Package 2024

The F-One Wing Foil Package 2023 includes:

F-One Strike V3 size 5m

F-One Rocket ASC Foil Board  size 5’10

F-One Gravity FCT 1800 Foil or FCT 2200

As well as a Mystic MK8 Helmet and a Pump worth £120 in our “All to Go” set!!!

Perfect package to get you started wing foiling!!!

F-One StrikeV3

Through Sail Engineering, we have conceived a completely new design; everything has been precisely thought-out to adapt the wing’s shape to the tensions and new materials.

Every panel on the STRIKE V3 is precisely laid to carry a specific load. The front of the wing combines horizontal panels separated by a vertical seam from the innovative radial center panels, which are mapped to accurately follow every load trajectory. The trailing edge is controlled by a vertical panel in 66g. Small radial cuts are also implemented on the wingtips and on the back of the strut to spread tensions. Aligning the fibre exactly along the load paths means that stretch can be controlled to a never-before-seen level on a wing.

Thanks to this precise load management, the wind range of the STRIKE is extended at both the high and low end, and the range of wind strengths where the wing feels perfect is greater than ever before.

With our staggered seams, the fabric and its seams work better to keep a smooth and efficient profile and the flying shape of the wing never deforms under load. The control of the profile is ideal, especially in the high end where stability is superb to ride fully balanced on both arms and in total comfort.

The new trailing edge tensions and radial cuts have brought incredible performance and control. Located on the back of the strut, our innovative Load Diffuser made of overlapping panels of hard Mylar and Dacron further helps maintaining the profile sleek and efficient, leading to the ultimate stability, performances, and longevity.

Every reinforcement on this wing has been reviewed to ensure durability and to save weight.

With the STRIKE V3 delivering stability beyond compare, we could have a flatter dihedral angle and thus reach a bigger projected area. In turn, the power and pumping abilities are even more improved for planing starts. This allows riders to use a smaller wing or board than before.

A new and slightly more compact outline with less span makes the STRIKE V3 easier to pump and ride. The center of traction has been perfectly placed right in front of the rider to guarantee a perfect balance on both arms.

Finally, all profiles have been revised to accommodate our new parameters. We were able to slightly reduce the V3’s profile thickness to bring even more comfort and control in strong winds. The high end potential of this STRIKE V3 is impressive, with an effective forward traction that won’t let you overexert yourself even when overpowered.

HANDLES

To further improve and optimize the rider’s control of the wing, we have rigidified our handles while keeping our original, lighter construction that doesn’t include any hard parts that could damage your wing, ding your board, or hit yourself. Our grippy, ergonomic and comfortable handles allow for some flexibility so your wrist is always in line with your arm.

This also gave us the opportunity to design the strut just as we liked. The front of it goes down straight away on your front hand before going up into the wing’s profile near your back hand. This leads to a more natural position to sheet in.

PERFORMANCE AND CONTROL

Thanks to its new design and precise fabrics placement, the STRIKE V3 is a masterpiece of aerodynamism. The perfect control of the profile and deformations guarantees unforgettable sessions.

We kept the STRIKE’s light weight and unique freefly stability so you can go for long surfs or downwinds without worrying about your wing and remain focused on your trajectory and foil.

In your hands, its legendary planing and pumping power are even better. When on the water, the upwind abilities are impressive with an incredibly consistent traction. This wing’s upwind performance is overall greatly enhanced throughout the wind range.

If you like to glide and go fast in total control and comfort, the STRIKE V3 will bring performance and stability. For freestyle and jumping, the height and lift will surprise you and all landings will be easier.

Virtually a brand-new wing, the V3 is an improvement of the V2 in all areas and pushes the performance of a wing into new territories. While it will surely satisfy riders of the highest level, the STRIKE is also incredibly accessible to anyone wanting to discover wing foiling.

The STRIKE V3 has it all and is yet again ahead of the game. Be the first to pick the third.

F-ONE GRAVITY 1800, 2200 FCT

A F-ONE Gravity 1800 foil is an intuitive foil to use. It generates lift at low (and even very low) speed but does it in a smooth way so you can keep your balance easily. The wings are designed to be easy to roll and turn, so they can perform in the surf.

The Gravity 1800 has its dimensions optimised to provide enough lift to get anyone flying. We made sure to keep the drag limited to maintain a thrilling feeling of glide. The span is generous making it a very stable foil. The profile and the wing tips insure it remains highly maneuverable.

The wing is covered using a thin but strong protective layer to protect it from scratches and digs. It is built in fibreglass around an injected foam core and fits on a streamlined, aluminium fuselage. Connection via a large, solid plate at the front of the fuselage ensuring a very solid and stiff bond between the wing and the fuselage. The fuselage can be connected to the standard F-ONE aluminium mast of the desired length. The setup and disassembly are also super easy and the whole is very travel friendly.

The F-One Gravity 1800 comes with the IC6 300 Stab. This stabiliser offers easy take-off and good directional stability for a secure feel which is perfect when riding. Built using the IC6 technology it is both strong and durable

The Gravity FCT foil is a ideal to be used with the F-one Rocket Wing ASC or Rocket Air V2 board

Features

• Smooth take-off
• Stability and lift
• Easy to turn
• Light – 4.7kg including 74cm mast
• Well priced
• Easy to assemble

Area: 1760 cm²
Span: 90 cm
Aspect Ratio: 4.6
Weight: 1.65 kg (wing only)
Alu Fuselage: 74 Surf

F-One Gravity 1800 FCT Technology

Foil Compression Technology

The Foil Compression Technology is a F-One innovation offering impressive mechanical properties making it particularly suited for foil subjected to high stresses and bending loads.

Our F-One Gravity FCT front wings are built in fiberglass around a high density foam core. The wing is covered by our thin and strong shield skin.
This technology offers one of the most accessible foil setup market whilst keeping the DNA of its carbon siblings.

FUSION LINK

The FUSION LINK enables the perfect connection between the Fuselage and the Front Wing using a large solid plate at the front of the fuselage.
It is screwed to the front wing using 4 x M6 – 14 mm screws , resulting in a connection geometry that ensures a very solid and stiff assembly.

Aluminium 6061

Produced from an extrusion process, our aluminium profiles make the most of this homogeneous material to provide perfect stiffness both in torsion and bending. All areas in contact with other metals or carbon parts are duly isolated against galvanic reactions.

Machining blocks of aluminium 6061 guarantees the maximum accuracy and preserves the mechanical properties of this higher grade of aluminium. All parts are fully anodised and stainless steel inserts are fitted with isolating gel when fastening is required.

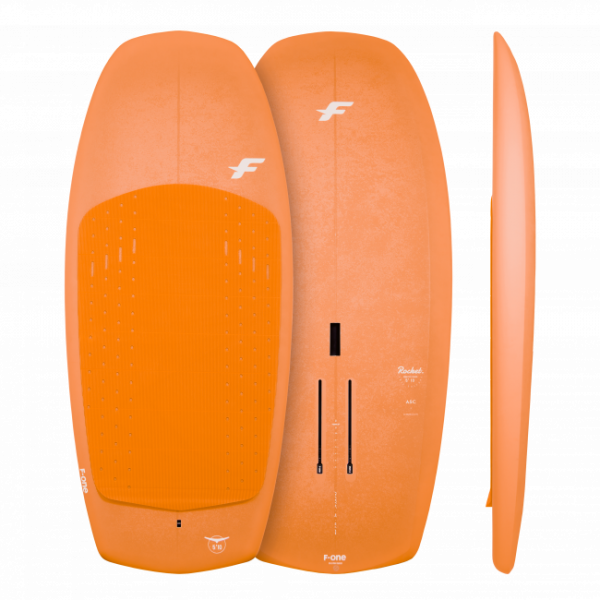

F-One Rocket Wing ASC 5’10”

Wing Foil Board

F-ONE has put all its experience in foil and wingsurf  designs to create the ideal board which will suit most of the wingfoil riders needs. With its compact length and light weight, the board is responsive and ideally suited to cruising or surfing on a foil, a wing in your hands.

• Fun and responsive
• Stable and forgiving
• Durable and user-friendly

Wing surfing is one of the most exhilarating ways of flying above the water. The freedom allowed by the handheld wing is amazing. Once you’ve learned how to use it, there are many reasons to opt for a dedicated Wing foilboard to best enjoy your Wing surf foiling.

Our experience on wing foiling shows that after using our SUP Foil we could quickly switch to smaller boards. The surf foil boards on the other hand have proved to be quite extreme. Therefore we felt the need for a new type of shapes for wing surfing.

We have created a new range of wing boards with 2 range of volumes to make it possible for most riders to stand-up easily as well making sure that riding back to the shore is possible, even when the wind drops. Their dimensions and shapes are unique and specific to the practice.

Using the foil actively to create your motion is one of the biggest thrills of wing surf foiling. To ensure you can make the best use of your foil, we have created boards that will help you carve better on the swell, connect the bumps and enjoy your session.

F-ONE Rocket Wing ASC at 5’10 for 110L. the board has enough volume and width to make it possible for most riders to stand-up easily as well as making sure that riding back to the shore is possible, even when the wind drops. Its dimensions are ideal for an easy progression.

Using some straight rocker lines for an easy take-off and a wide tail outline for an optimized volume distribution, the F-One ROCKET ASC features a sharp beveled rail profile to make the release easier during take-off and the touch-down smoother when the board hits the water again. In other words, you will be up and flying in no time and you won’t be unsettled when occasionally hitting the water.

The F-One ROCKET ASC is equipped with a recessed handle for easy carrying, a full pad for comfort and with the twin track system on the bottom to connect with most foils on the market (4-bolt plate system). It is built around a light core made of eps foam injected into a specific mould carved to its own shape. This core is then laminated with fiberglass and epoxy resin into another mould and wrapped inside a protective shield skin. This shield, made of polymer, is both ultra-thin and very durable.

TECHNOLOGY

The AIR SHIELD COMPOSITE stand up paddles are constructed around a light weight injected EPS core molded to our original shape. It is laminated with a composite made of high strength glass fiber, epoxy resin and a genuine shield made of a high quality protective topsheet layer. The topsheet is a tough and extremely reliable material also used in the construction of F-ONE twin-tips as well as in most of the skis and snowboards on the market. Thanks to their construction molded in one shot, the A.S.C. SUP are light weight, responsive and extremely durable.
