F-One Strike V3 Wing

Description

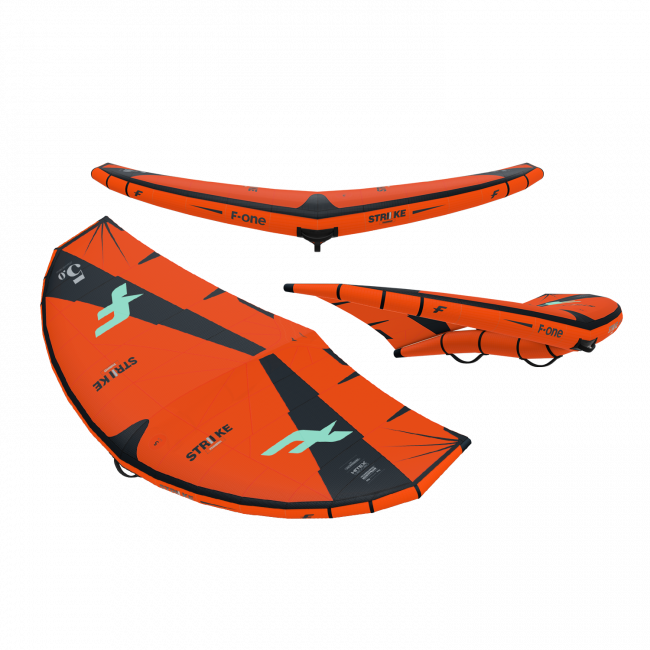

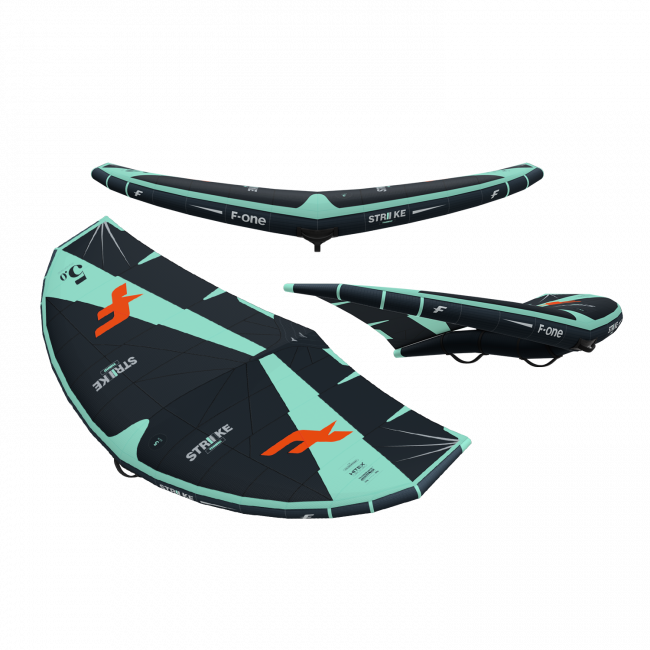

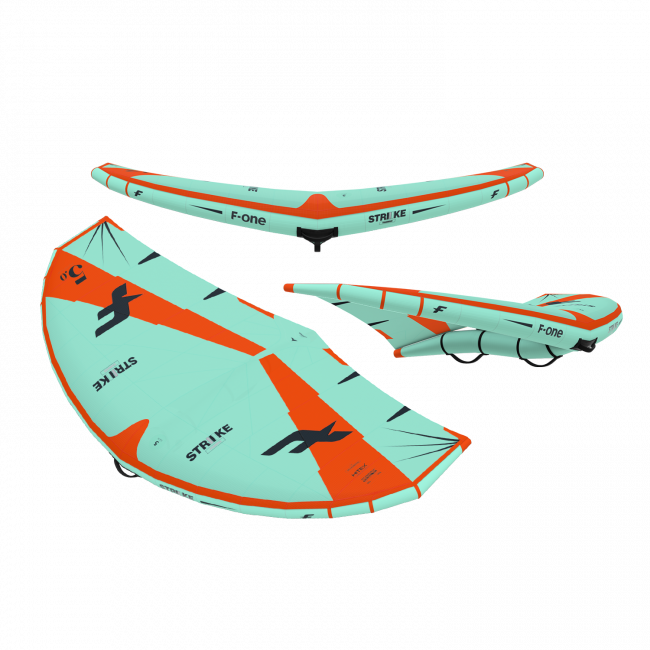

F-One Strike V3 Wing

Conceived with the latest technologies and featuring a revolutionary design, the F-One Strike V3 Wing is the ultimate performance wing. Whether it’s freeride, freestyle, surfing or freefly, this state-of-the-art wing can do it all. The STRIKE V3 delivers unparalleled performance while guaranteeing comfort, stability, power, precision, durability, and the ability to go upwind quickly and efficiently in any winds.

• Revolutionary design for unprecedented performance.

• New HITEX and TECHNOFORCE for increased durability.

• Perfect control of the profile and deformations to guarantee comfort throughout the entire wind range.

• Improved power delivery and planing.

• Impressive upwind performances.

• Legendary lightness and stability in freefly.

• Perfectly balanced center of traction for an intuitive ride.

Available in: 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5 m²

For this third edition of our iconic STRIKE, the R&D team has worked on three areas: the materials, the placement of these materials and the design to improve performance and durability.

MATERIALS

The inflatable structure of the STRIKE V3 is made of HITEX 158g and 178g. This brand-new high tenacity polyester exclusive to F-ONE offers great resistance to elongation and therefore greater durability and performances.

The central strut is thinner in diameter thanks to the HITEX 158g and its independent valve that allows for a better control of its pressure. Its longitudinal reinforcements help command its shape and resistance.

The four central segments of the leading edge on each side of the strut are made of HITEX 178g, while the four outer segments nearer the wingtips are in 158g. Both materials are perfectly distributed to account for the different tensions, high pressures, and weight distribution in this area.

Since the beginning, we have also kept a thin leading edge diameter at the wingtips, bringing agility, comfort and glide, but also lightness and less inertia.

In addition to the new HITEX, we have developed a thicker TECHNOFORCE™/D2 in 66g for the trailing edge where tensions are important and resistance essential. The rest of the wing’s canopy is in TECHNOFORCE™/D2 in 52g.

WING DESIGN

Through Sail Engineering, we have conceived a completely new design; everything has been precisely thought-out to adapt the wing’s shape to the tensions and new materials.

Every panel on the STRIKE V3 is precisely laid to carry a specific load. The front of the wing combines horizontal panels separated by a vertical seam from the innovative radial center panels, which are mapped to accurately follow every load trajectory. The trailing edge is controlled by a vertical panel in 66g. Small radial cuts are also implemented on the wingtips and on the back of the strut to spread tensions. Aligning the fibre exactly along the load paths means that stretch can be controlled to a never-before-seen level on a wing.

Thanks to this precise load management, the wind range of the STRIKE is extended at both the high and low end, and the range of wind strengths where the wing feels perfect is greater than ever before.

With our staggered seams, the fabric and its seams work better to keep a smooth and efficient profile and the flying shape of the wing never deforms under load. The control of the profile is ideal, especially in the high end where stability is superb to ride fully balanced on both arms and in total comfort.

The new trailing edge tensions and radial cuts have brought incredible performance and control. Located on the back of the strut, our innovative Load Diffuser made of overlapping panels of hard Mylar and Dacron further helps maintaining the profile sleek and efficient, leading to the ultimate stability, performances, and longevity.

Every reinforcement on this wing has been reviewed to ensure durability and to save weight.

With the STRIKE V3 delivering stability beyond compare, we could have a flatter dihedral angle and thus reach a bigger projected area. In turn, the power and pumping abilities are even more improved for planing starts. This allows riders to use a smaller wing or board than before.

A new and slightly more compact outline with less span makes the STRIKE V3 easier to pump and ride. The center of traction has been perfectly placed right in front of the rider to guarantee a perfect balance on both arms.

Finally, all profiles have been revised to accommodate our new parameters. We were able to slightly reduce the V3’s profile thickness to bring even more comfort and control in strong winds. The high end potential of this STRIKE V3 is impressive, with an effective forward traction that won’t let you overexert yourself even when overpowered.

HANDLES

To further improve and optimize the rider’s control of the wing, we have rigidified our handles while keeping our original, lighter construction that doesn’t include any hard parts that could damage your wing, ding your board, or hit yourself. Our grippy, ergonomic and comfortable handles allow for some flexibility so your wrist is always in line with your arm.

This also gave us the opportunity to design the strut just as we liked. The front of it goes down straight away on your front hand before going up into the wing’s profile near your back hand. This leads to a more natural position to sheet in.

PERFORMANCE AND CONTROL

Thanks to its new design and precise fabrics placement, the STRIKE V3 is a masterpiece of aerodynamism. The perfect control of the profile and deformations guarantees unforgettable sessions.

We kept the STRIKE’s light weight and unique freefly stability so you can go for long surfs or downwinds without worrying about your wing and remain focused on your trajectory and foil.

In your hands, its legendary planing and pumping power are even better. When on the water, the upwind abilities are impressive with an incredibly consistent traction. This wing’s upwind performance is overall greatly enhanced throughout the wind range.

If you like to glide and go fast in total control and comfort, the STRIKE V3 will bring performance and stability. For freestyle and jumping, the height and lift will surprise you and all landings will be easier.

Virtually a brand-new wing, the V3 is an improvement of the V2 in all areas and pushes the performance of a wing into new territories. While it will surely satisfy riders of the highest level, the STRIKE is also incredibly accessible to anyone wanting to discover wing foiling.

The STRIKE V3 has it all and is yet again ahead of the game. Be the first to pick the third.

Available in: 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5 m²

Technology

Moving away from kite fabricsThe efforts on a kite and on a wing are completely different.
Here, we are talking about the structure of our products. Even if the canopy is the surface that receives the wind, the leading edge and the struts of a kite or a wing make up the main structure, and therefore guarantee their qualities in flight.Held by two central handles, its two sides tend to deform under wind pressure. This is why the leading edge of a 5m² kite is between 10-15cm in diameter, while the leading edge of a wing with the same surface is about twice as big.

The larger the diameter of the leading edge, the larger the surface area of the fabric.
The air pressure in a volume is applied to the cm², under the formula:
pressure (Pa) = Force (N) / Surface (m²).
With the same inflation, the material of the leading edge of a wing receives a much higher pressure than that of a kite.
Moreover, in normal use, a wing is more often left flapping, dragged on abrasive surfaces, soaked in salt water, etc.



The ideal fabric for a wing has increased pressure resistance, limited deformation, and outstanding durability.



The High Tenacity Polyester: HITEX.

After working with our fabric manufacturer partners for a long time, we decided to use High Tenacity Polyester, a technical material offering a high resistance to elongation and superior durability.

Because each part of a wing does not require the same resistance to deformation, we developed two weights: 178g for the center of the wing and 158g for the wingtips.
The center of the wing must not deform in any way; it is the direct link between the user’s hands and the wind, and its rigidity guarantees stability of the wing while riding.

It is however interesting to keep the wingtips less rigid. Indeed, a controlled deformation of the wingtips allows to pump more efficiently, to absorb strong wind gusts, and thus to offer an increased comfort throughout the ride.



The use of this high tenacity fibre, in weights perfectly adapted to our sport and our designs, has allowed us to reduce the diameter of the leading edge and to limit the use of additional reinforcements. This results in improved aerodynamics and reduced weight, offering better performances.



The HITEX is coated with PLASMA, an innovation exclusive to our supplier, which guarantees increased durability of the fabric. Coupled with high tenacity polyester fibres, it makes HITEX the most durable material on the market. Our wings stay in good shape much longer and thus retain their original design and performance over time.
