Description

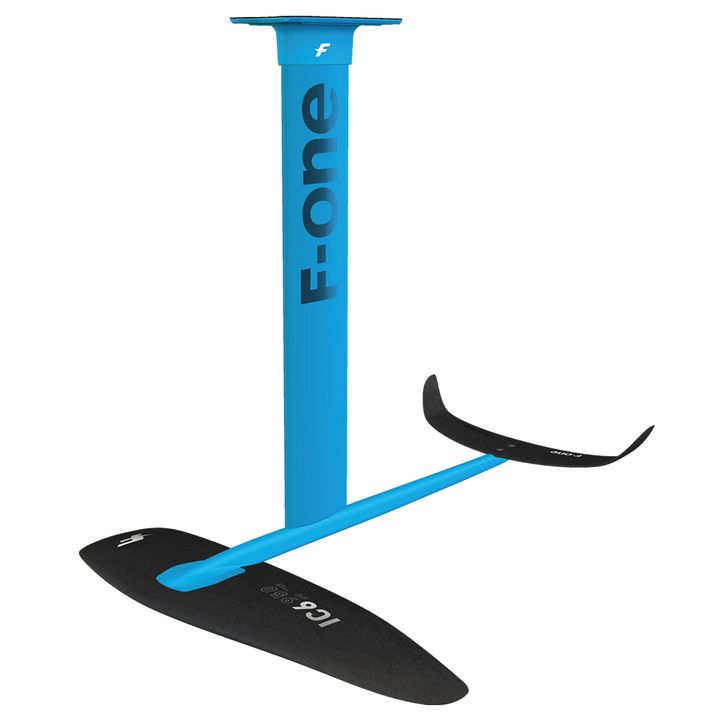

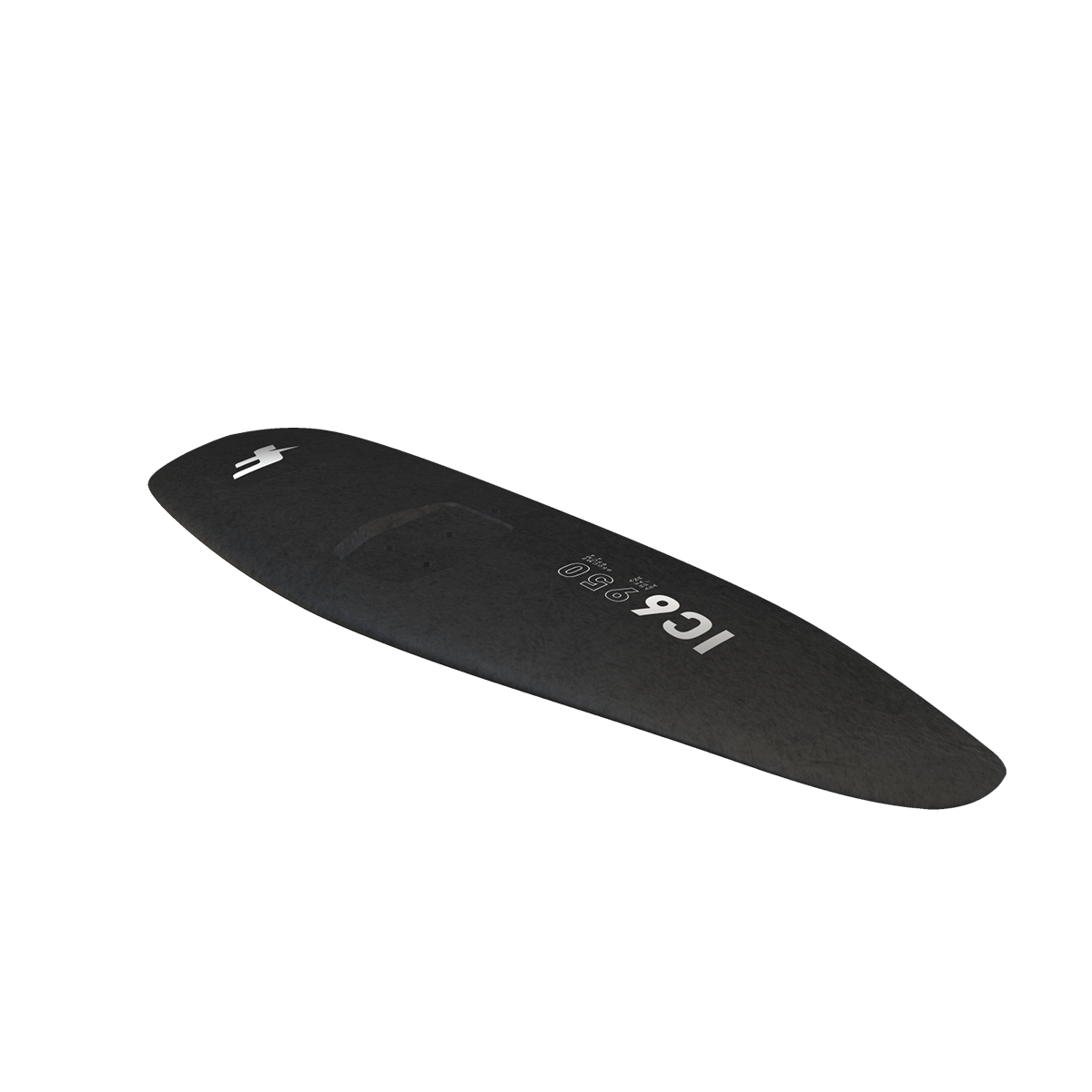

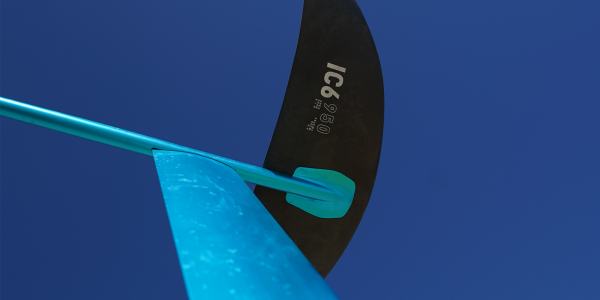

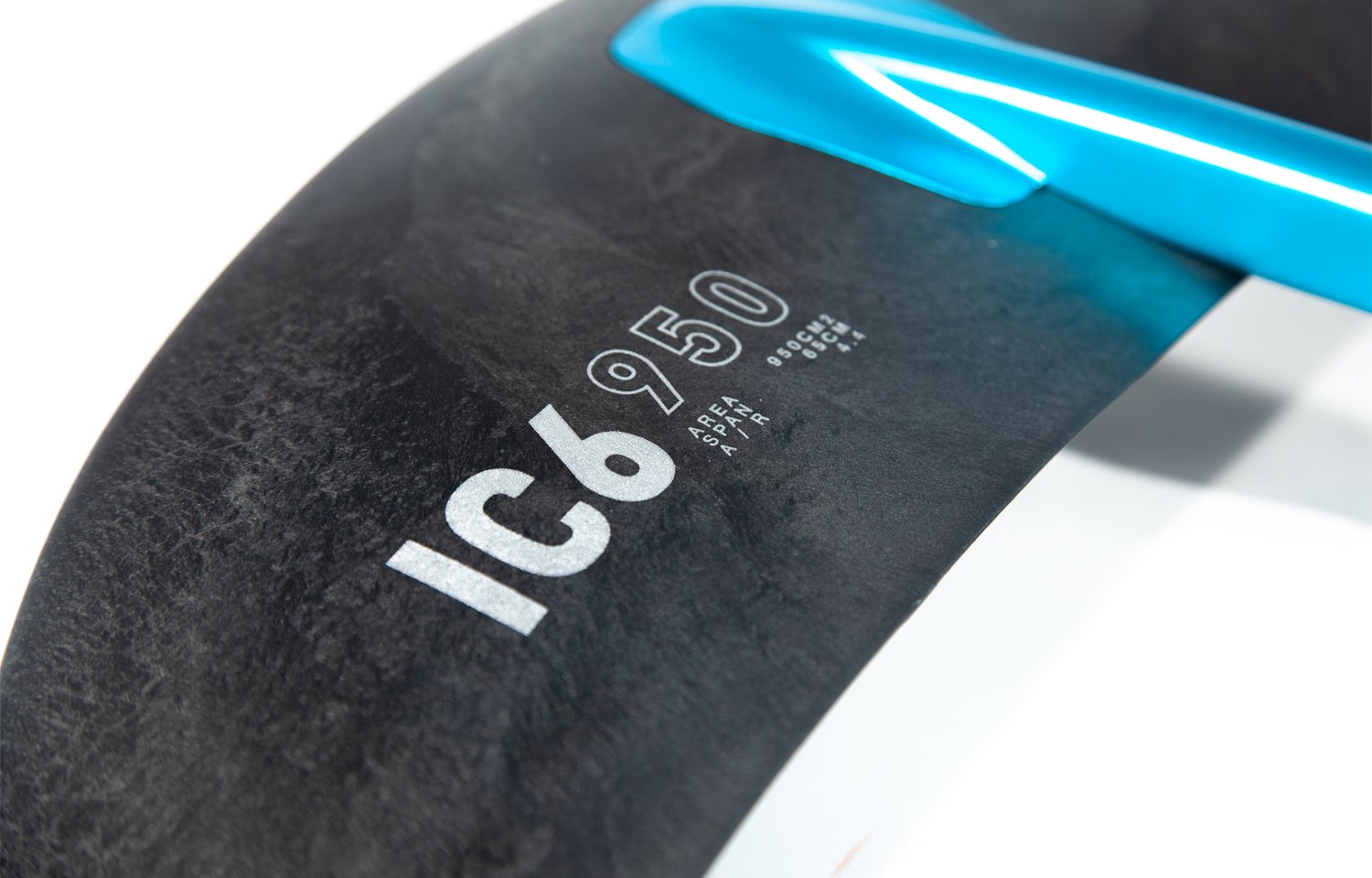

F-One IC6 950 V.3

The F-One IC6 950 V.3 is very accessible and offers a surprising potential for progression so it is really the ideal “first” foil purchase.

Made in our specific technology called Injected Carbon, our wings and stabilisers are very tough and very durable. This technology makes our IC6 wings a lot more ding resistant than conventional carbon wings. The front wing has a metal insert at its core to provide extra resistance and better stiffness. The wing is bolted to the fuselage using two in-line and two offset screws, resulting in a connection geometry that ensures a very solid and stiff assembly.

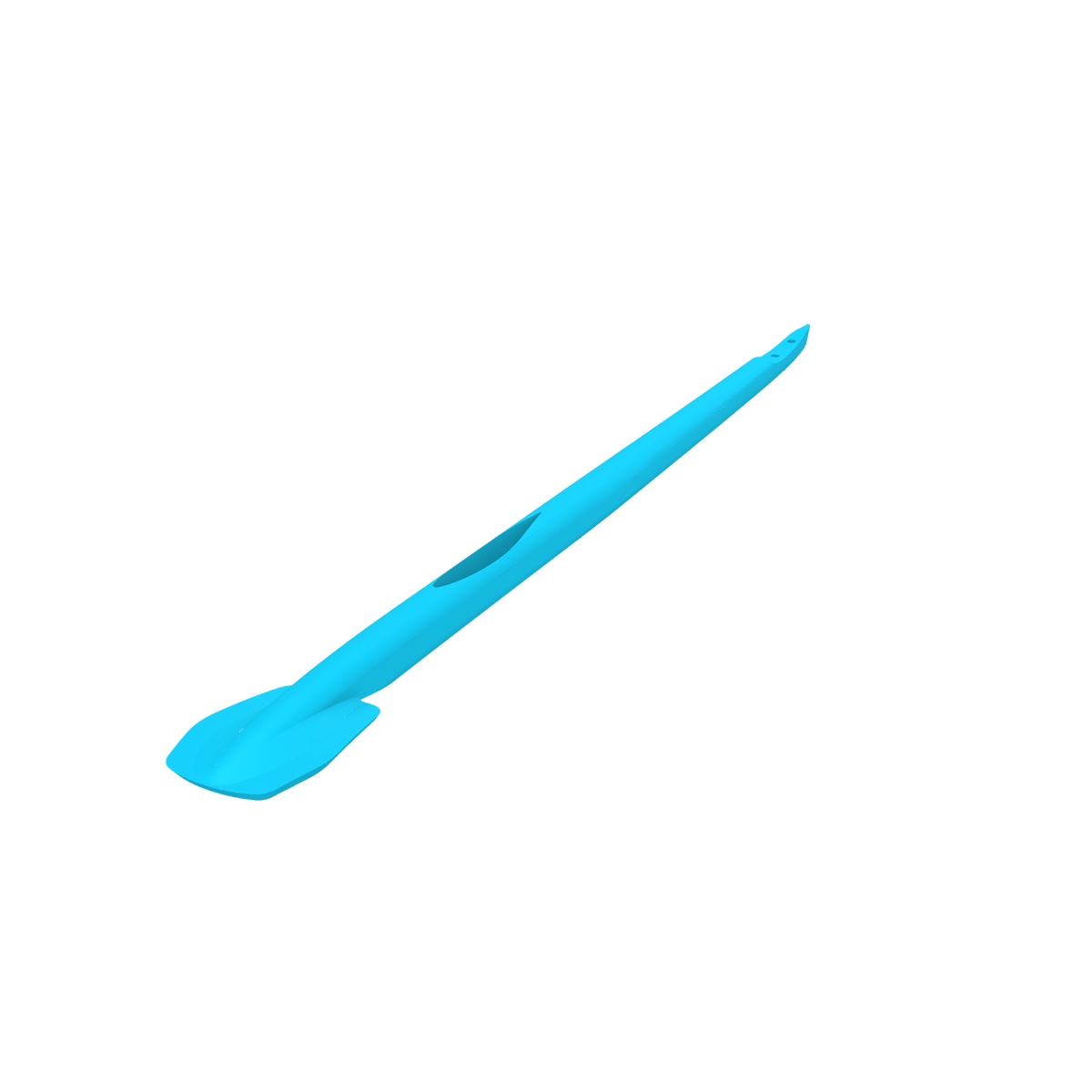

The fuselage and mast are made of aluminium. The mast plugs directly into the fuselage and, at the top, a 4-bolt plate that can be plugged in to get the foil compatible with any board fitted with tracks. Alternatively, a selection of optional standards like KF, DeepKF or Tuttle heads is also available.

This foil is not only versatile but it’s also very intuitive and predictable. The take-off is really progressive, the ride in the air super smooth. You have complete control on the speed and on your path.

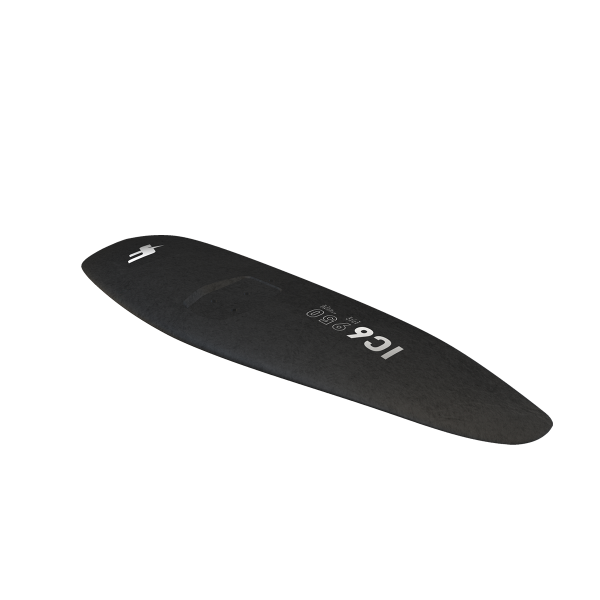

The latest front wing design is 950cm². It has been refined from the previous versions to extend the range of use. With more lift, the IC6 V3 is easier than ever to learn on and have fun whatever your foiling level. Using careful design, it can fly at very low speed but it can also accelerate with great maneuverability and a fantastic carving potential.

The IC6 950 V3 is designed for anyone looking for a first foil purchase or simply for a versatile setup able to deliver tons of fun on the water.

The F-One foil is a ideal to be used with the F-one Slice Bamboo Foil.

Features

• Easier than ever
• Versatile, very intuitive, and predictable
• Large range of use
• Well priced
• Easy to assemble

Area: 965 cm²
Span: 65 cm
Aspect Ratio: 4.4
Weight: 1.33 kg (wing only)

IC6 950 V.3 Technology

Injected Carbon

The IC6 Technology consists of an injected polymer reinforced with carbon fibers. This material is very strong and shows some impressive mechanical properties making particularly suited for parts subjected to high stresses and bending loads.The IC6 technology offers great resistance and stiffness with extreme durability.

FUSION LINK

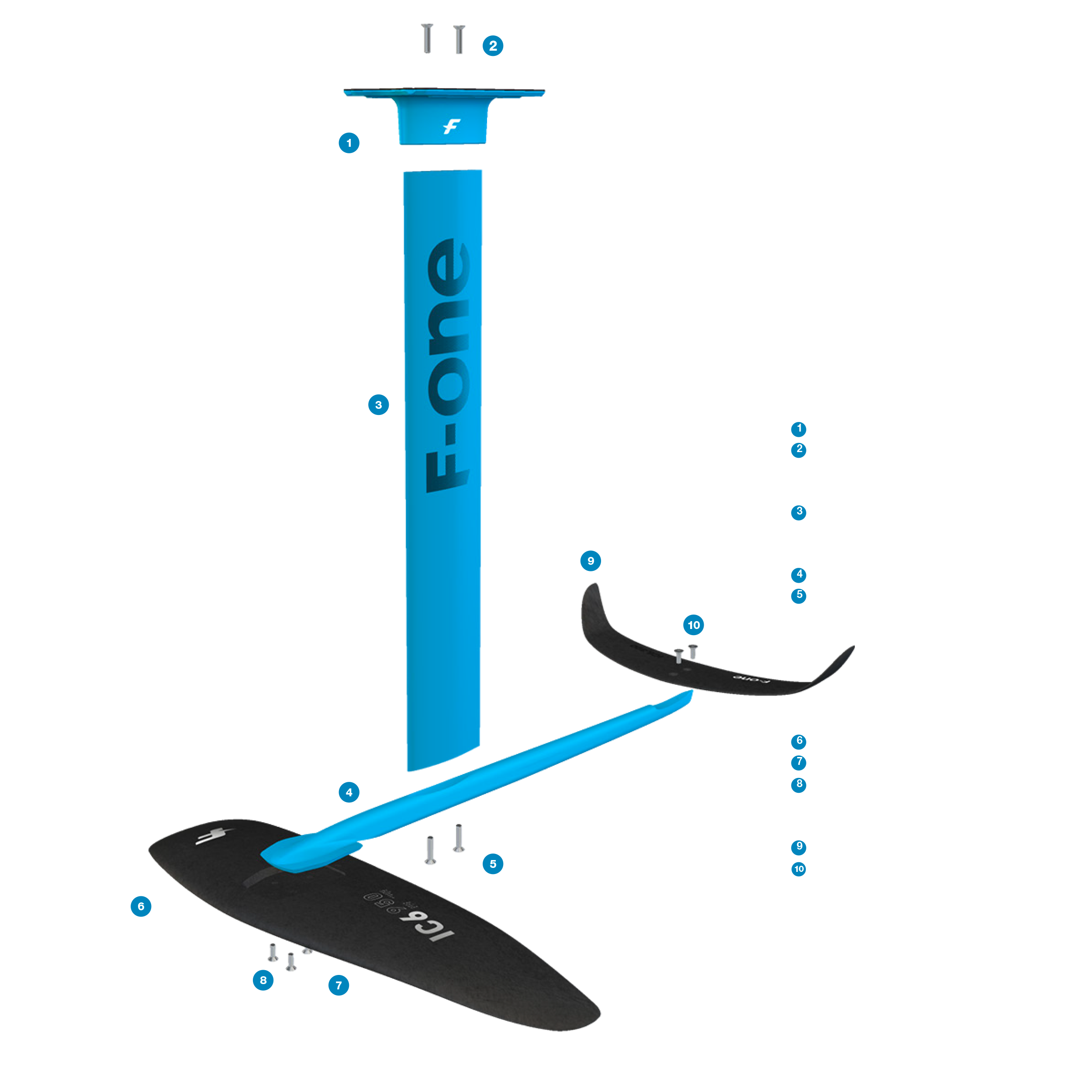

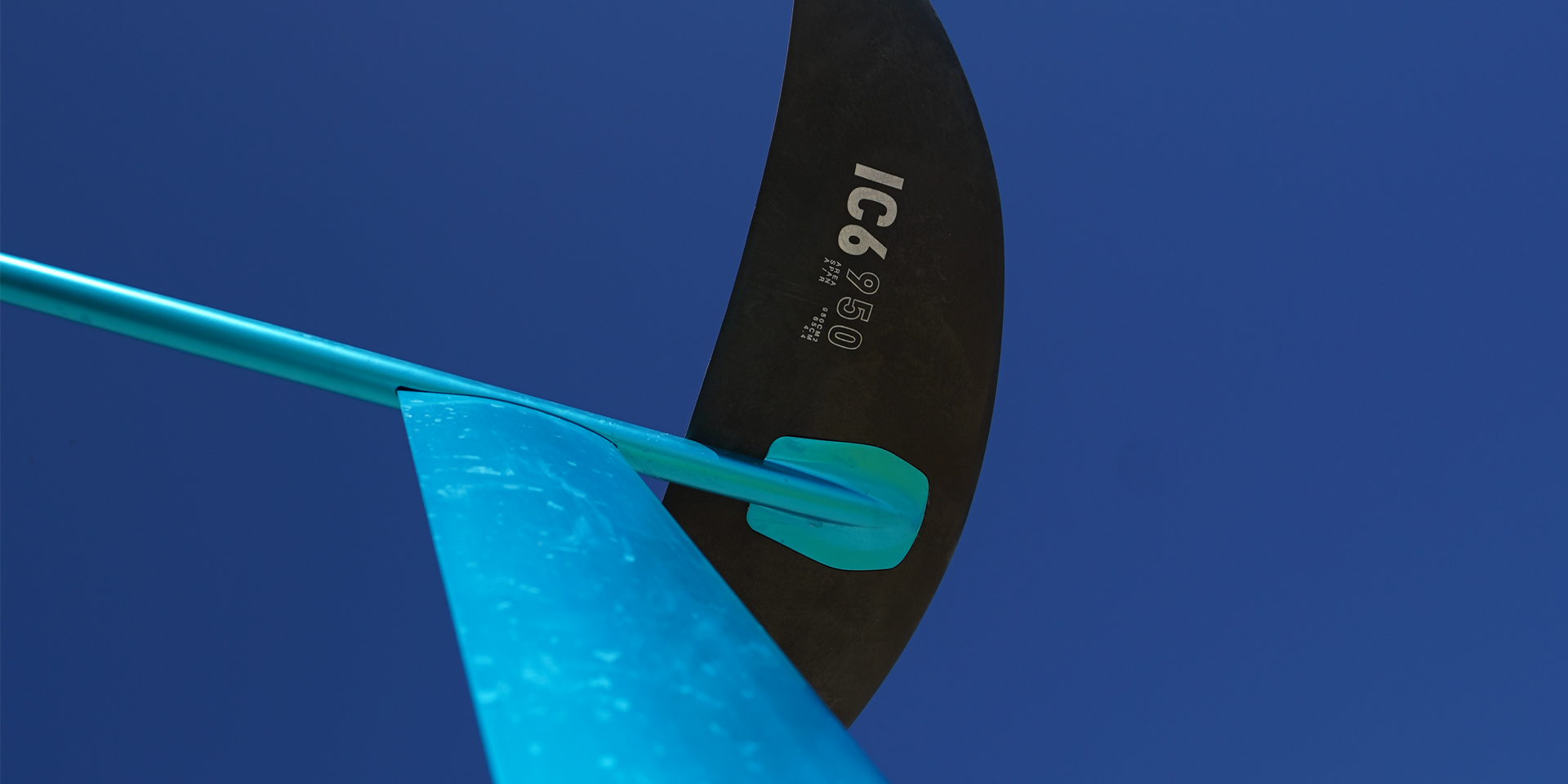

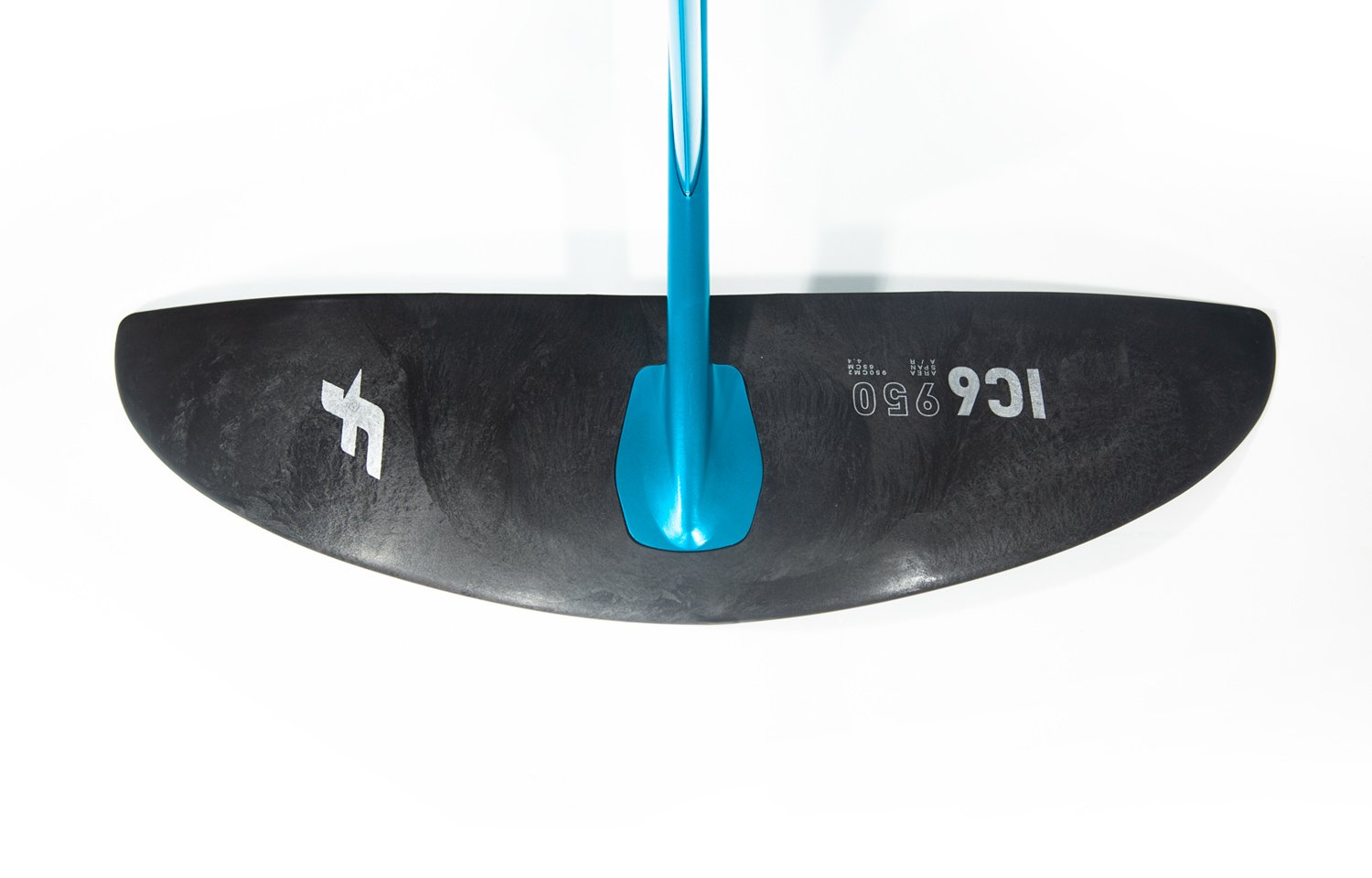

The FUSION LINK enables the perfect connection between the Fuselage and the Front Wing using a large solid plate at the front of the fuselage.
It is screwed to the front wing using 4 x M6 – 14 mm screws , resulting in a connection geometry that ensures a very solid and stiff assembly.

Aluminium 6061

Produced from an extrusion process, our aluminium profiles make the most of this homogeneous material to provide perfect stiffness both in torsion and bending. All areas in contact with other metals or carbon parts are duly isolated against galvanic reactions.

Machining blocks of aluminium 6061 guarantees the maximum accuracy and preserves the mechanical properties of this higher grade of aluminium. All parts are fully anodised and stainless steel inserts are fitted with isolating gel when fastening is required.
