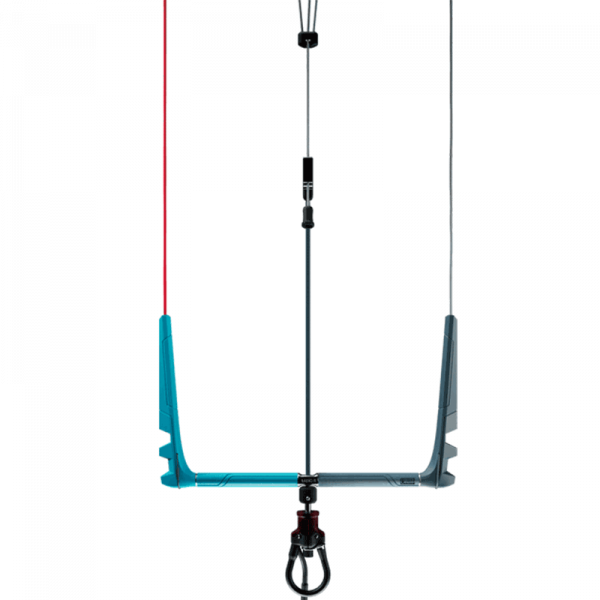

The Unit bar features all the features we could put into a single bar. Starting at the bottom -The Unit bar has a new v2 freestyle leash ring which allows for freestyle mode with the leash connection now behind the IQR rather than hanging off the side. This makes the whole quick release much more compact in freestyle mode and has also increased the strength and reliability in freestyle mode. The Unit bar features a new premium leash with an elasticated webbing bungee and a new quick-release system that’s proven to be much more reliable in the field.

Unit Bar Futures

Moving up from the IQR, the Unit bar features a multi-bore tubing PU tube which accommodates both the de power mainline and the landing line, allowing for just a single line to go through the centre fitting on the bar. The bar itself features the same stainless steel centre fitting with an oversized or enlarged centre hole that comes on the Ride bar.

The Unit bar is 50 centimeters long with a full 10-centimeter width adjustment available with our modus bar ends taking it out to a 60-centimeter bar when required, by just using a standard fin key. The unit bar features the same 20 increase in floatation EVA bar-ends and increased rear line adjustment available under these bar ends. Coming up to the cleat fitting. This is a custom cleat fitting designed specifically for use with multi-bore tubing and allows for easy access for the landing line into the channel through the multi-bore tube.

The landing line set up on the Unit bar is quite unique it is a high frontside landing line where you have, what appears to be, three lines at the de power bracket

Two of those – your landing line and one front line, go up to the nine-meter position where the bungee that keeps your landing line tight is also located. The reason to do this system is, it gives you all the advantages of kite handling with a low v but allows the landing line to be continuous from your leash attachment all the way to the nine-meter mark meaning no knot being pulled through the multi-bore tubing. This allows the tubing to be much smaller and also much more reliable in the field.
